• Front/rear medium platinum bumpers
• Painted grille
• Sealed-beam headlights
• Telescopic trailer tow mirrors
• Solar tinted glass
• Hinged 60/40 side cargo doors

• Dual vinyl front bucket seats
• Inboard armrest on front seats
• Front black vinyl floor covering
• Black plastic stepwell pads
• Tilt steering column
• Medium dark flint-color instrument panel-inc: tachometer
• Front air conditioning
• AM/FM stereo radio-inc: (2) speakers, digital clock
• 12-volt pwr point in instrument panel
• LH/RH black cowl trim panels
• Front vinyl headliner
• Medium flint-color trimmed vinyl sun visors
• Driver & front passenger A-pillar interior grab handle
• Lights-inc: front dome, rear cargo
• Courtesy light switches on all doors

• Pwr 4-wheel anti-lock disc brakes
• Driver & front passenger second generation airbags
• Medium flint-color safety belts w/height adjustable D-ring
• Electric single note horn

4.6L SOHC EFI V8 "TRITON" ENGINE

• (STD)

• 4.10 Axle Ratio
• GVWR: 8,520 lb Payload Package
• 16" x 7" Steel Wheels
• ETR AM/FM Stereo w/Clock/Single CD Player
• Inside Rear-View Mirror
• 16" Full Sport Wheel Covers
• 4-Wheel Disc Brakes
• Front beverage holders
• Variably intermittent wipers
• Tilt steering wheel
• Power steering
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Air Conditioning

• Vehicle
• Rear Door Type: Dual
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: 1725
• Cooling System
• Total Cooling System Capacity (qts): 25.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3240
• Gross Axle Wt Rating - Rear (lbs): 5120
• Curb Weight - Front (lbs): 2894
• Curb Weight - Rear (lbs): 2309
• Gross Vehicle Weight Rating Cap (lbs): 8520
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf 1-Stage
• Spring Capacity - Front (lbs): 3240
• Spring Capacity - Rear (lbs): 3830
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 5520
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 25.4
• Shock Absorber Diameter - Rear (mm): 25.4
• Stabilizer Bar Diameter - Front (in): 1.0
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.72 x 0.38
• Rear Brake Rotor Diam x Thickness (in): 12.9 x 0.54
• Tires
• Front Tire Order Code: T37
• Rear Tire Order Code: T37
• Spare Tire Order Code: 51A
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Spare Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): 2680
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): 2680
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Revolutions/Mile @ 45 mph - Spare: 709
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 46.7
• Turning Diameter - Wall to Wall (ft): 48.9
• Frame
• Frame Type: Single Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Doors
• Side Door Type: RH Dual Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 212.0
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 81.2
• Overhang, Front (in): 30.0
• Overhang, Rear w/bumper (in): 43.9
• Ground to Top of Load Floor (in): 26.9
• Ground Clearance, Front (in): 7.2
• Ground Clearance, Rear (in): 7.2
• Rear Door Opening Height (in): 48.3
• Rear Door Opening Width (in): 54.4
• Side Door Opening Height (in): 47.2
• Side Door Opening Width (in): 47.1
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): 20.6
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 138.7
• Cargo Area Length @ Floor to Seat 1 (in): 113.5
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.7
• Cargo Box (Area) Height (in): 52.5
• Cargo Volume (ft³): 236.5
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42.0
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.5
• Summary

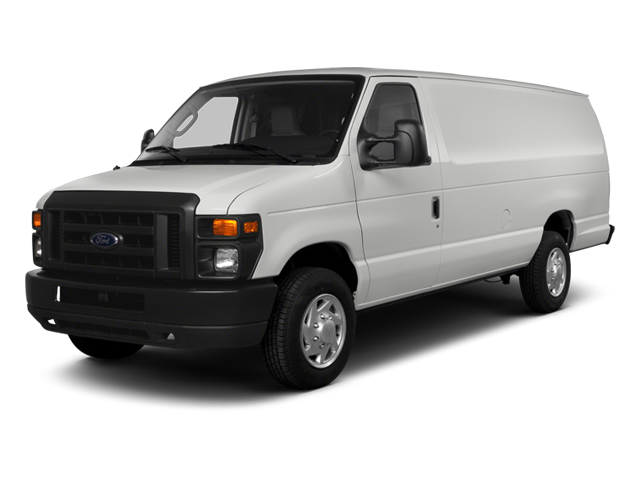

• Vehicle Name: Ford Econoline Cargo Van
• Body Style: E-150
• Body Code: 138
